Toroidally bent crystals are used in X Ray spectrometry and in XPS instruments.



They are the perfect geometry for point to point focusing.



They are used for a single wavelength, as their value of their 2 radii - meridional and sagittal - are fully dependent from the value of the Bragg’s angle.



• Meridional – Dispersive direction : Rm = 2 x RRowland

• Sagittal – Focusing direction : Rs = Rm x sin² θ

​

​

​

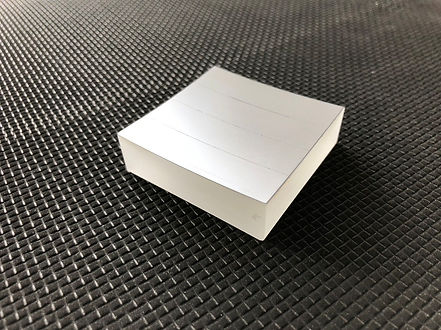

On request, AlpyX can study and engineer toroidally bent Johansson crystals.

​​
